How to Config IP Address of Router and System for Establishing Connection in Cisco Packet Tracer
.png)
Steps to Configure the Router , systems and switches

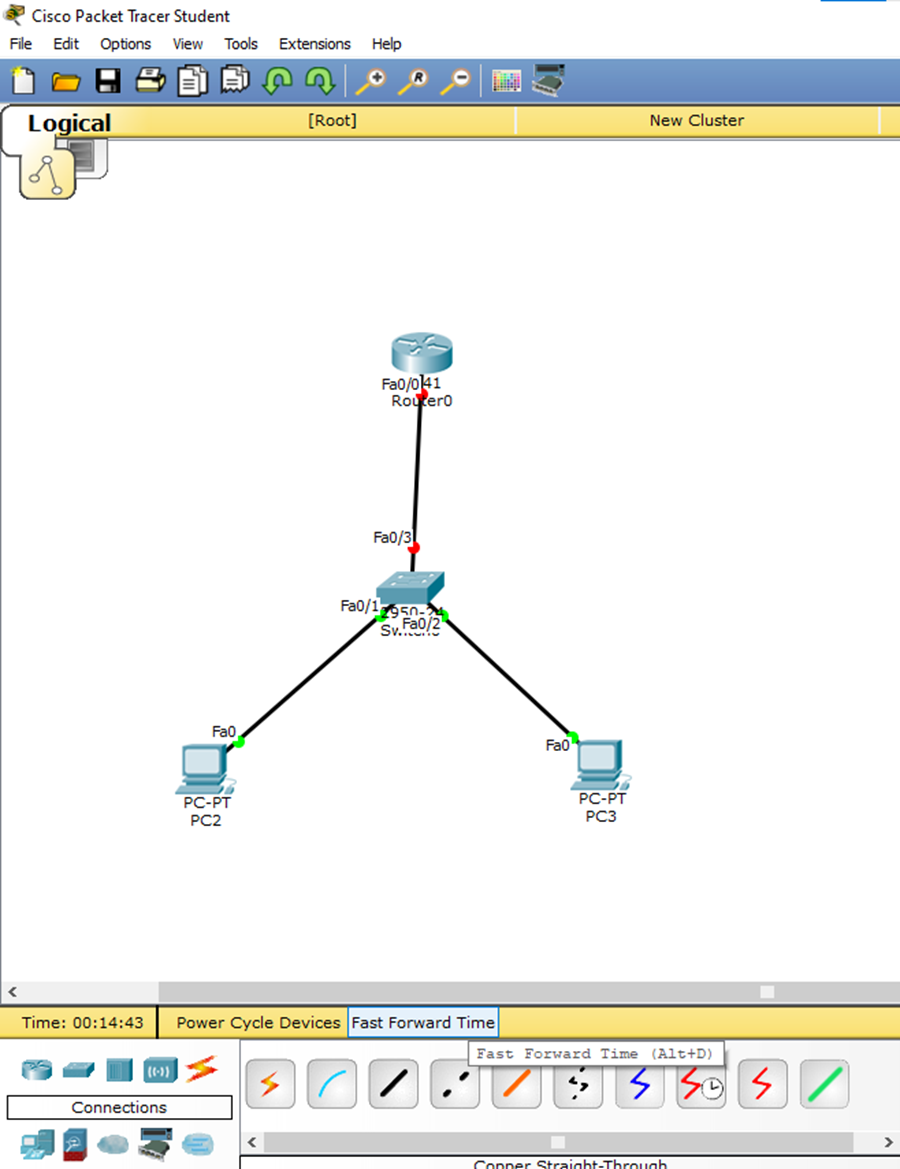

Actual Display of Cisco Packet Tracer
Step 1 : To Add Router from the Bottom as Shown in image
Step 2 : Now same Add the Switches and Computer System
Step 3 : Now use Copper Wire To
Connect the Router and the System from below
Step 4 : Now Your Connect and Router Will Appear

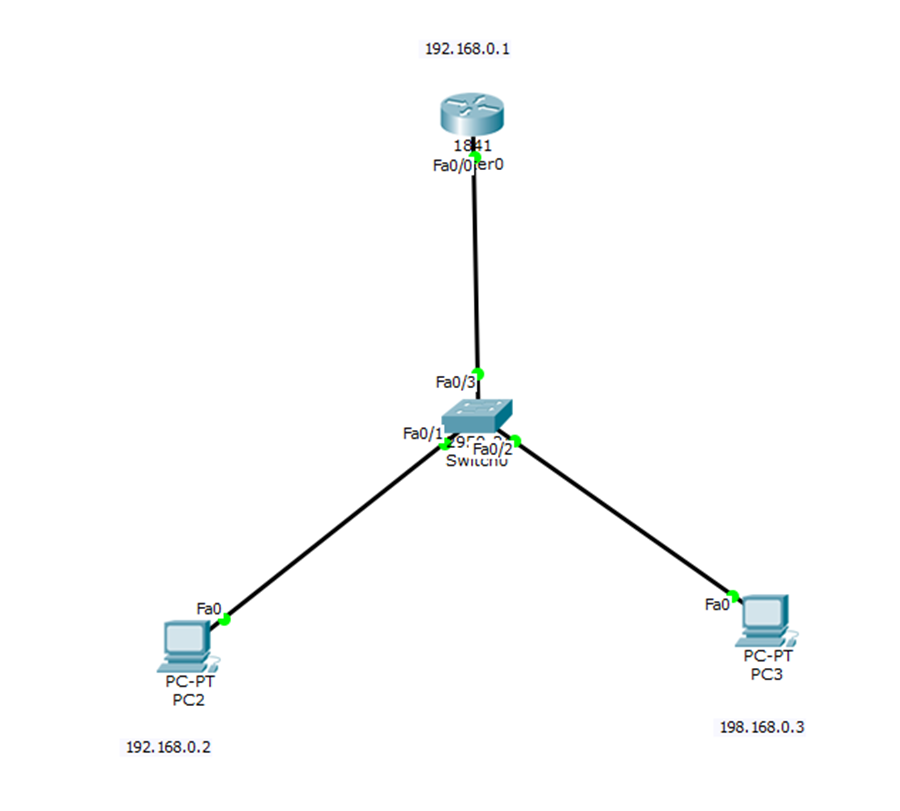

Step 5 : Now lets Configure the Router , switches , and Computer System using " text - box "
Step 6 : Now lets Configure the Actual Ip adder of Router and Computer
system using the Given Steps in image
Step 7 : Now Doubble tab to " IP configuration " option and add
the IP address of PC-0 i.e 192.168.0.2
and PC-1 192.168.0.3 and Use The Default Gateway of Router i.e 192.168.0.1

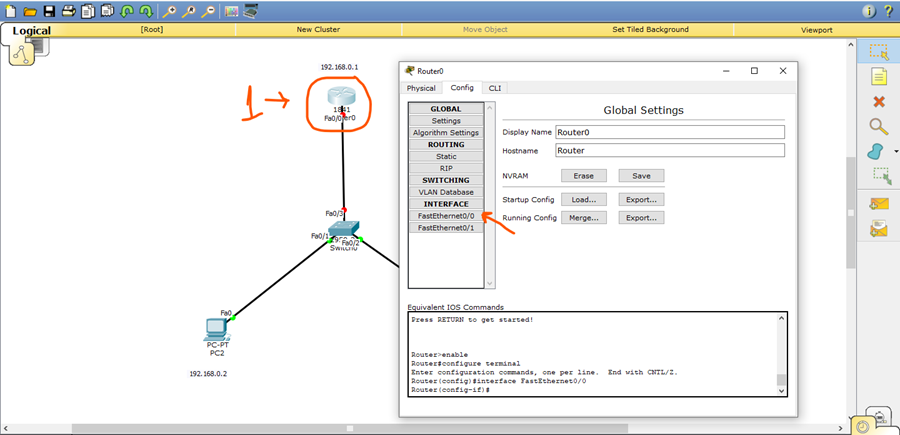

Step 8 : Now While configuring the Router Add the Default gateway to wire
connected Loaction only
Step 9 : Now Add The Details of the
Main Router and Its IP address ... after adding the Ip address Now on The
Router by ticking
Step 10 : Now As You Can See All The green dots Mean Now Your Connection Is
Stable and Connect Successfully now You can send Message from Router To
Computer and Computer to Computer
Step 11 : Now in last step You You can send message from computer to
computer and Computer to Router Vice versa
Output : Its is a Final Output As You can see The Successfull message
Transmission
